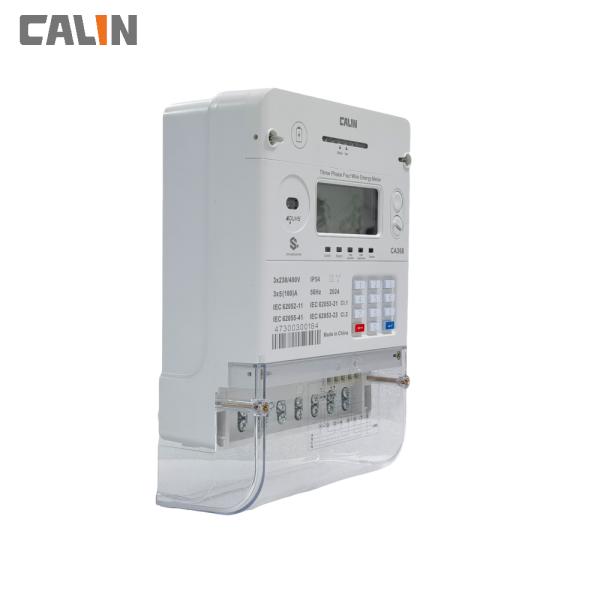

Three Phase STS Keypad Prepaid Meters With Bs Mounting GPRS Communication
The CA368 is Calin's triple phase prepaid meter. It is a four-wire, three phase of 100 Amp per phase, keypad based prepayment meter in a BS standard mounting housing. The meter is designed for large residential houses, small commercial and industrial metering applications.
The product is manufactured by ISO9001 standards. IP54 rated protection, a broad range of voltage ( Un -40% +20%) and 30V/m RF immunity , allow it to work in harsh environments. The CA368 provides both active and reactive energy measurement, and a 2400 bps baud rate infrared optical port for data extraction and investigation.
The CA368 can also work with a user interface unit as UU. UIU is a display unit with keypad . Meter information can be toggled by different combination of short codes. Users can easily search and display metering data such as monthly usage, daily usage, present current and voltage, balance, and last five entered tokens.
As the orginal designer of CA368, Calin is also supplying to other NON-STS member meter manufacturers.
Major Features
1) Standard Transfer Specification(STS) standard
2) Infrared optical and RS485 ports for interrogation
3) Disconnects on overload, tamper and credit zero
4) Programmable load limit and low credit warning level
5) Tamper prevention and event record
6) Recall 12 months historical usage data and last 5 entered token
7) Operates in both prepayment and credit mode
8) Maximum demand measurement
AMR/AMI Smart Metering Features (optional)
1) Split connection to User Interface Unit (UIU) wire or wireless
2) Plug & Play PLC/ RF/ GPRS/GSM communication module for AMR/AMI applications
3) Multi-rate and holiday settings
4) Advanced load control and disconnection features
5) DLMS/COSEM , IEC62056 standard
Technical data spreadsheet:
|
Electrical parameters: |
|
|
Nominal voltage Un |
3x220/230/240V |
|
Limited voltage |
60%~120%Un |
|
Frequency |
50 / 60Hz+5% |
|
Basic current(Ib) |
10A |
|
Maximum current(Imax) |
100A |
|
Starting current(Ist) |
30mA |
|
Active energy constant |
400imp/kWh |
|
Accuracy |
|
|
Active energy to IEC62053‐21 |
Class1.0 |
|
Reactive energy to IEC62053‐23 |
Class2.0 |
|
Power Consumption |
|
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Temperature range |
|
|
Operation meter |
25℃ to+70℃ |
|
Storage |
40℃ to+85℃ |
|
|
|
|
Insulation strength |
|
|
AC Insulation strength |
4kV at 50Hz during 1min |
|
Impulse voltage 1.2/50μs mains connections |
8kV |
|
|
|
|
Electro Magnetic Compatibility |
|
|
Electrostatic discharges |
|
|
Contact discharge |
8kV |
|
Air discharge |
16kV |
|
Electromagnetic RF fields |
|
|
27MHz to 500MHz typical |
10V/m |
|
100kHz to 1GHz typical |
30V/m |
|
Fast transient burst test |
4kV |
|
Mechanical requirements |
|
|
Protection Rating |
IP54 |
|
Insulation Classification |
Protective Class II |
|
Maximum cable size |
10 mm |
