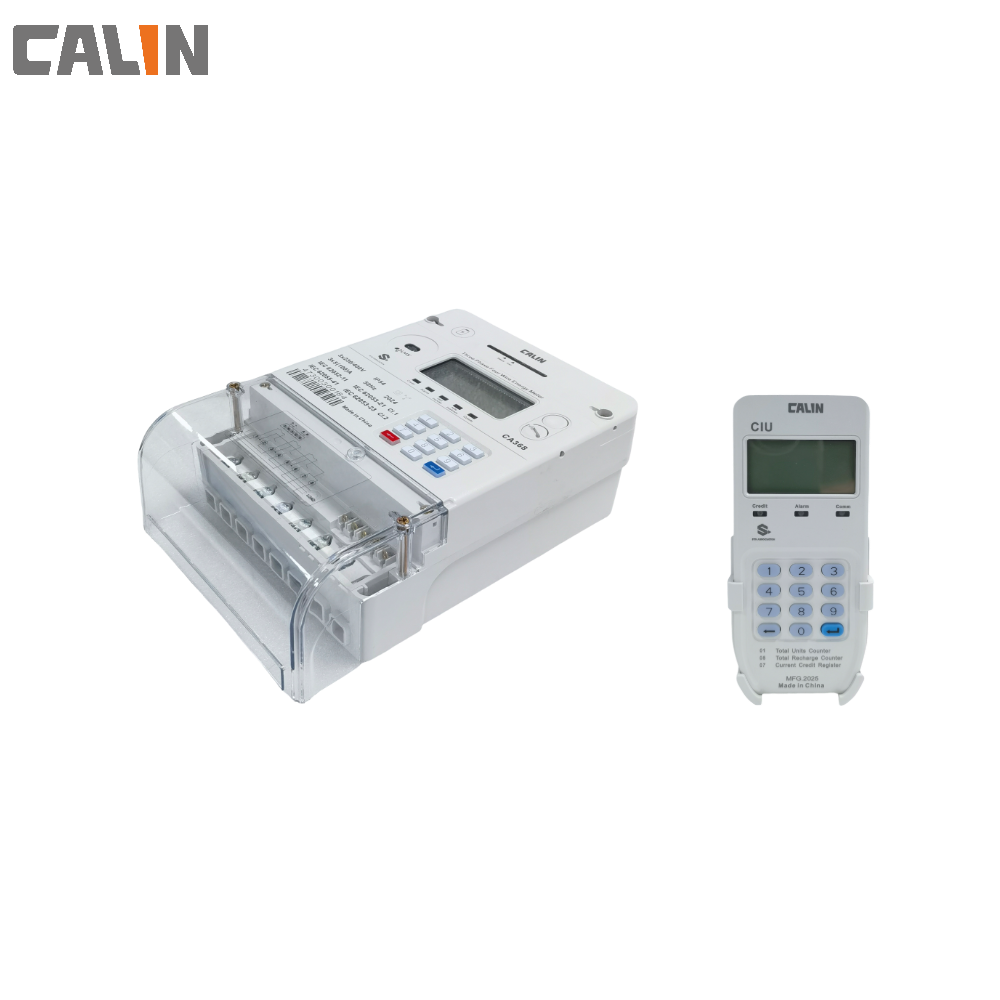

PLC Commercial Electric Meter 3X240V Voltage Surge Safe 3 Phase Power Meter
The CA368-s is a split type prepayment electric meter that consists of two parts, the MCU (metering control unit ) and CIU (customer interface unit). The CIU is deployed inside of consumer's home where there is any plug point when the MCU is locked away in a kiosk or meter cabinet on the pavement or mounted on the poles. The communication between the CIU and MCU adopts Power Line Carrier (PLC) technology compliant with European standard. This wireless setup makes the main meter immune to any form of tamper.
The main meter MCU CA368 is a poly phase four wire, three wire ( optional), 100 Amp per phase meter, finished in a compact British Standard 5685 housing. Thanks to its extended surge protection for up to 16kV lightening and wide range of operatable voltage ( Un-50%--Un+130%), the meter is intended for prone-to-lightening and brownouts frequent areas such as Afica and central America.
The CA368-S allows a utility and service provider to make payment settings such as free basic unit, emergency overdraft credit, debt collection regulations for a flexible contractual control purpose.
Major Features
1) A surge safe meter
2) STS standard encryption for prepayment
3) Trips on overload and zero credit
4) Programmable load limit and low credit warning threshold
5) Tamper and fraud detection
6) Maximum demand measurement and load profiling record (optional)
7) Operates in prepayment and credit mode
8) Meter information accessible on Calin's short codes
9) Interoperability and compatibility as per DLMS/COSEM standard
Utility Benefit
a) Quick and easy to install
b) Flexible payment control settings
c) Multi-rate and tariff on Time of Use basis
d) Meter wireless communication with AMR AMI server
e) Reduce operational and maintenance cost
Specifications:
|
Electrical parameters: |
|
|---|---|
|
Nominal voltage Un |
3x240V |
|
Limited voltage |
60%~120%Un |
|
Frequency |
50/60Hz+5% |
|
Basic current(Ib) |
10A |
|
Maximum current(Imax) |
100A |
|
Starting current(Ist) |
30mA |
|
Active energy constant |
400imp/kWh |
|
Accuracy |
|
|
Active energy to IEC62053‐21 |
Class1.0 |
|
Reactive energy to IEC62053‐23 |
Class2.0 |
|
Power Consumption |
|
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Temperature range |
|
|
Operation meter |
25℃ to+70℃ |
|
Storage |
40℃ to+85℃ |
|
|
|
|
Insulation strength |
|
|
AC Insulation strength |
4kV at 50Hz during 1min |
|
Impulse voltage 1.2/50μs mains connections |
8kV |
|
|
|
|
Electro Magnetic Compatibility |
|
|
Electrostatic discharges |
|
|
Contact discharge |
8kV |
|
Air discharge |
16kV |
|
Electromagnetic RF fields |
|
|
27MHz to 500MHz typical |
10V/m |
|
100kHz to 1GHz typical |
30V/m |
|
Fast transient burst test |
4kV |
|
Mechanical requirements |
|
|
Protection Rating |
IP54 |
|
Insulation Classification |
Protective Class II |
|
Maximum cable size |
10 mm |
